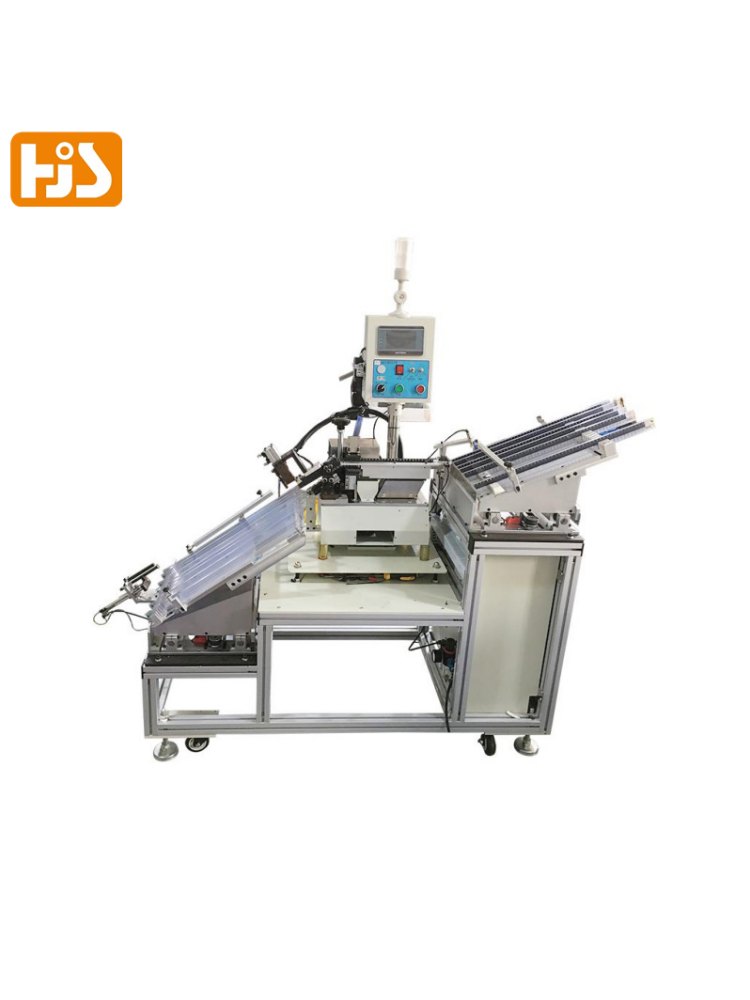

Tube IC Lead Clipping and Forming HJC-20T
1. Load 20 pipes of materials at a time, automatically feeding;
2. Automatic foot cutting, adjustable foot length, knob adjustment, scale reference;
3. Load 20 empty pipes at a time and automatically collect materials;
4. PLC program control system, touch screen operation;
5. Abnormal shutdown alarm function;
IC lead forming|IC lead forming and cutting|IC lead bending and forming|IC lead forming guide|IC lead forming and taping machine
Introduction
1. Load 20 tubes of materials at a time, automatically feeding;
2. Automatic foot/lead cutting, adjustable foot/lead length, knob adjustment, scale reference;
3. Load 20 empty tubes at a time and automatically collect materials;
4. PLC program control system, touch screen operation;
5. Abnormal shutdown alarm function;
Tool material: Japan SKD11
Sheet metal process: high temperature powder spraying / surface anode / hard chrome
Electric control: Omron / Mitsubishi
Power supply: 220VAC 50HZ
Air source: 5-7Mpa
Power: 50W
Dimension: L1150xW650xH800mm
Weight: 185 Kg
Processing efficiency: 4000 pcs/ H
Options:
- tube in tube out with lead cutting function;
- tube in bulk out with lead forming and shaping function;
please contact sales for video
